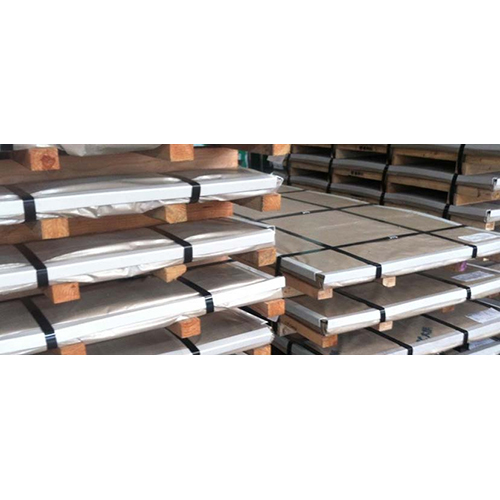

316L Stainless Steel Sheets

Grade

Stainless Steel 316/316L, SS 316/316L, UNS S31600/S31603

Standard

ASTM A240 / ASME SA240

Thickness

4 mm To 100 mm

Length

2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc

Width

1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc

Surface

2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hairline, sandblast, Brush, etching, etc

Finish

Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)

Form

Sheets, Plates, Coils, Slatting Coils, Perforated Coils

Applications

Off-Shore Oil Drilling Companies, Power Generation, Petrochemicals, Gas Processing, Specialty Chemicals, Pharmaceuticals, Pharmaceutical Equipment, Chemical Equipment, Sea Water Equipment, Heat Exchangers, Condensers, Pulp and Paper Industry

Grade

C

Mn

Si

P

S

Cr

Mo

Ni

N

SS 316

0.08 max

2 max

1.0 max

0.045 max

0.030 max

16.00 - 18.00

2.00 - 3.00

11.00 - 14.00

67.845 min

SS 316L

0.035 max

2 max

1.00 max

0.045 max

0.030 max

16.00 - 18.00

2.00 - 3.00

10.00 - 14.00

68.89 min

Grade

Density

Melting Point

Tensile Strength

Yield Strength (0.2%Offset)

Elongation

SS 316

8.0 g/cm3

1400 ^oC (2550 ^oF)

Psi - 75000 , MPa - 515

Psi - 30000 , MPa - 205

35 %

SS 316L

8.0 g/cm3

1399 ^oC (2550 ^oF)

Psi - 75000, MPa - 515

Psi - 30000, MPa - 205

35 %
