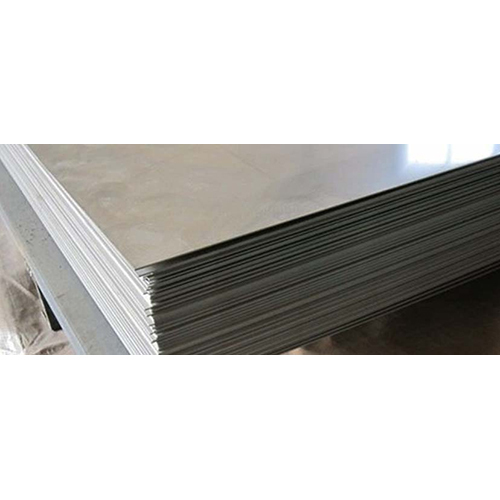

253 MA Stainless Steel Plates
Product Details:
- Product Name Stainless Steel Products
- Steel Type Stainless Steel
- Steel Product Type Steel Plates
- Shape Plate
- Surface Smooth
- Application Construction
- Color Silver
- Supply Ability : 200000 Kilograms Per Month
- Click to view more
X
Price And Quantity
- 100 Kilograms
Product Specifications
- Smooth
- Steel Plates
- Construction
- Stainless Steel Products
- Stainless Steel
- Plate
- Silver
Trade Information
- Cash Advance (CA)
- 200000 Kilograms Per Month
- 7-10 Days
- All India
Product Description
253 MA Stainless Steel Plates are high-temperature austenitic SS plates specifically designed for withstanding extreme temperatures and thermal cycling. They have usage in various industrial applications such as heat exchangers, kilns, and furnaces that operate at temperatures up to 1150 oC. They are flat, rectangular pieces, and are manufactured in standard thicknesses and sizes, however can also be custom cut to meet the requirements of particular project. Plus, they may be cold rolled or hot rolled, depending on the required tolerances and finish. 253 MA Stainless Steel Plates are the best choice for high-temperature applications where strength, durability, resistance to corrosion & scaling are critical.
253 MA SHEETS, PLATES & COILS SPECIFICATIONS :
Grade | 253 MA| UNS S30815 |
Standard | ASTM A240 / ASME SA240 |
Thickness | 4 mm To 100 mm |
Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hairline, sandblast, Brush, etching, etc |
Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
Form | Sheets, Plates, Coils, Slatting Coils, Perforated Coils |
Applications | Off-Shore Oil Drilling Companies, Power Generation, Petrochemicals, Gas Processing, Specialty Chemicals, Pharmaceuticals, Pharmaceutical Equipment, Chemical Equipment, Sea Water Equipment, Heat Exchangers, Condensers, Pulp and Paper Industry |
253 MA SHEET/PLATE EQUIVALENT GRADES
STANDARD | WERKSTOFF NR. | UNS | SS | EN |
253 MA | 1.4835 | S30815 | 2368 | X9CrNiSiNCe21-11-2 |
253 MA SHEETS, PLATES & COILS CHEMICAL COMPOSITION
Grade | C | Mn | Si | S | Ce | Ni | Cr | P |
253 MA | 0.05 - 0.10 | 0.80 max | 1.40 - 2 | 0.030 max | 0.03 - 0.08 | 10 - 12 | 20 - 22 | 0.040 max |
253 MA SHEETS, PLATES & COILS MECHANICAL PROPERTIES
Density | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
7.8 g/cm3 | MPa -600 | MPa - 310 | 40 % |
OTHER TYPES OF 253 MA SHEETS, PLATES & COILS
253 MA Sheets, Plates & Coils | ASTM A240 UNS S30815 Sheets | UNS S30815 Sheets, Plates & Coils |
253 MA Coils | 253 MA Plates | 253 MA Sheets |
ASME SA240 253 MA Perforated Coils | 253 MA Slatting Coils | ASTM A240 253 MA Sheets |
UNS S30815 Coils | WNR. 1.4835 253 MA Sheets, Plates | UNS S30815 Perforated Coils |
UNS S30815 Slatting Coils | 253 MA Sheets, Plates | 253 MA Sheets, Plates & Coils |
